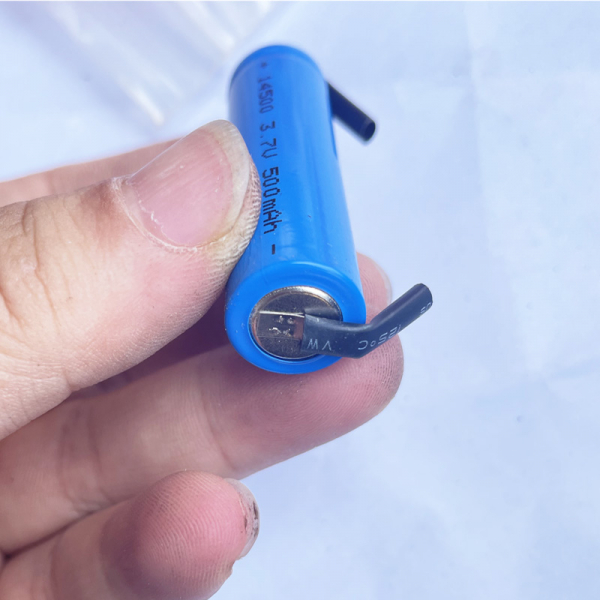

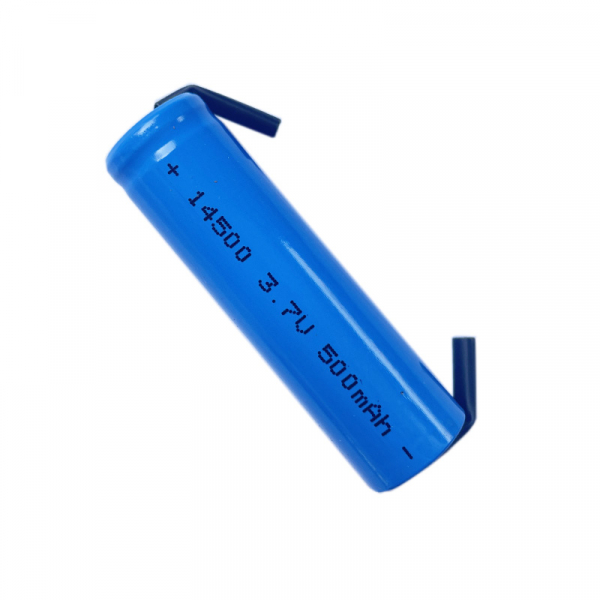

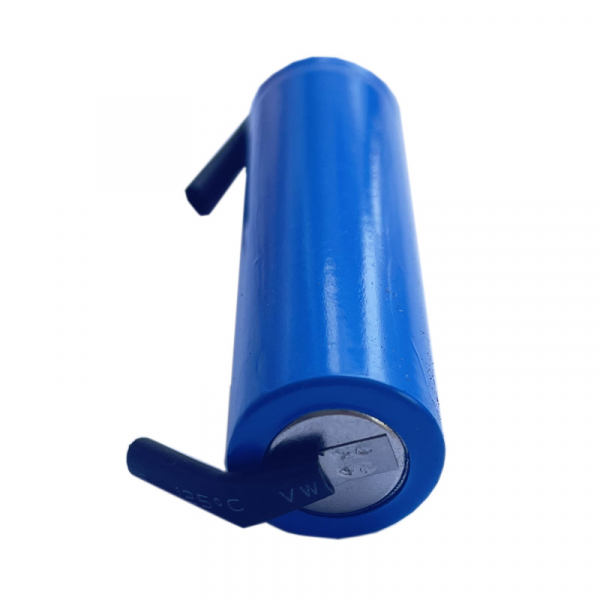

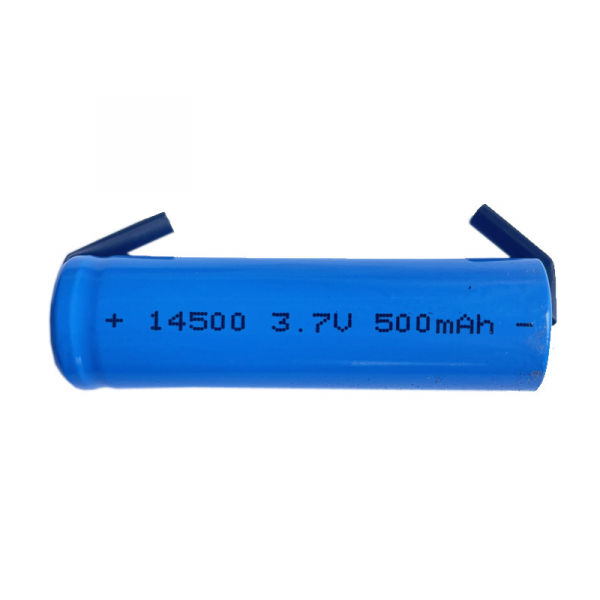

ICR14500 with Soldering
ICR14500 AA Battery Rechargeable 3.7V 800Mah Li ion Batteries 14500 lithium Battery For LED Flashlight

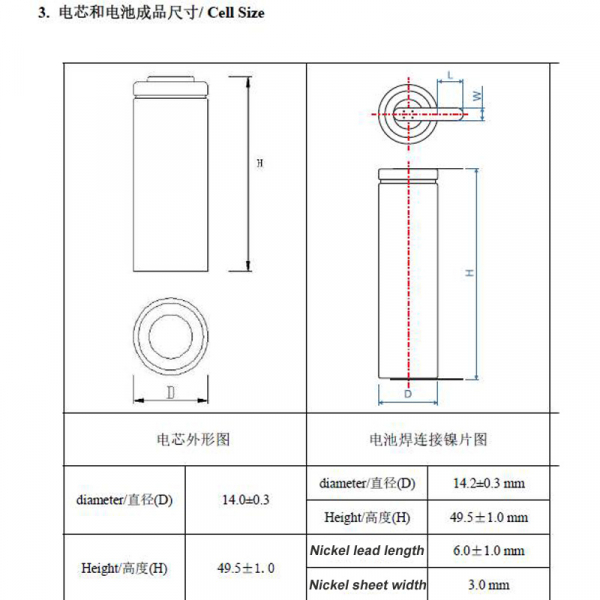

Diameter : ICR 14. 0 X 50.5MM
Rated Capacity:500mA
Internal resistance:<70mΩ
Open Voltage: 3.7V
Weight: About20g
Discharging Characteristic:Time of Standard Discharge shold be more than 5hrs.
Time of Quick Discharge should,be more than 0.9hrs.
Charge Retention: more than 4.25hrs. discharge
ycle Life: more than:400 cycles
Rated Capacity: Under 20+5℃, 65±5%RH, its means the capacity value of charging to End Voltage. The
capacity value can be expressed with code C 5 . Its unit is mAh. For battery ICR14500, C 5
=500mAh，
End Voltage： The end voltage of discharge is 2.75V, which is defined specially.
Standard Charge: Under 20+5℃, 65±5%RH, it can be charged to 4.2V with constant current of 0.2 C 5 mA,
and then , charged continuously with constant voltage of 4.2V until the charged current is less
than 0.01 C 5 mA.
Quick Charge: Under 20+5℃, 65±5%RH, it can be charged to 4.2V with constant current of 1 C 5 mA, and
then , charged continuously with constant voltage of 4.2V until the charged current is less than
0.01 C 5 mA.
Standard Discharge: Under 20+5℃, 65±5%RH, it can be discharged to the voltage of 2.75V with constant
current 0.2 C 5 mA.
Quick Discharge: Under 20+5℃, 65±5%RH, it can be discharged to the voltage of 2.75V with constant
current 1 C 5 mA.
Rated Capacity:500mA
Internal resistance:<70mΩ
Open Voltage: 3.7V
Weight: About20g
Discharging Characteristic:Time of Standard Discharge shold be more than 5hrs.
Time of Quick Discharge should,be more than 0.9hrs.
Charge Retention: more than 4.25hrs. discharge
ycle Life: more than:400 cycles
Rated Capacity: Under 20+5℃, 65±5%RH, its means the capacity value of charging to End Voltage. The
capacity value can be expressed with code C 5 . Its unit is mAh. For battery ICR14500, C 5
=500mAh，
End Voltage： The end voltage of discharge is 2.75V, which is defined specially.
Standard Charge: Under 20+5℃, 65±5%RH, it can be charged to 4.2V with constant current of 0.2 C 5 mA,
and then , charged continuously with constant voltage of 4.2V until the charged current is less
than 0.01 C 5 mA.
Quick Charge: Under 20+5℃, 65±5%RH, it can be charged to 4.2V with constant current of 1 C 5 mA, and
then , charged continuously with constant voltage of 4.2V until the charged current is less than
0.01 C 5 mA.
Standard Discharge: Under 20+5℃, 65±5%RH, it can be discharged to the voltage of 2.75V with constant
current 0.2 C 5 mA.
Quick Discharge: Under 20+5℃, 65±5%RH, it can be discharged to the voltage of 2.75V with constant
current 1 C 5 mA.
